Pneumatic Actuator

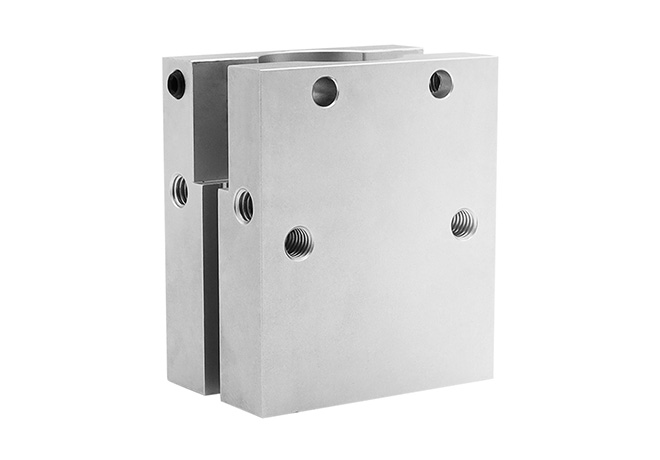

Angular Type Air Gripper NMHC2

0.1~0.6MPa
0.25~0.6MPa
-10~60℃(Not frozen)

±0.01
Not required
Solid state auto switch (3-wire, 2-wire)

Action		Double acting、Single acting
Fluid		Air
Operating pressure	Doubleacting	0.1~0.6MPa
	Singleacting	0.25~0.6MPa
Ambient and fluid temperature		—10~60C(Not frozen)
Max. operating frequency(c.p.m)		1 80
Repeatability(mm)		士0.01
Lubrication		Not required
Auto switch (Option)		Solid state auto switch (3-wire, 2-wire

Action	Mode	Bore size mm	Gripping moment (N·m) Note1) (Effective value)	Opening/closing angle (Both sides)	Weight Note2 (g)
Double acting	NMHC2- 10D	10	0.10	30°~-10°	39
	NMHC2- 16D	16	0.39		91
	NMHC2- 20D	20	0.70		180
	NMHC2- 25D	25	1.36		311
Singleacting	NMHC2- 10S	10	0.070	30°~-10°	39
	NMHC2- 16S	16	0.31		92
	NMHC2- 20S	20	0.54		183
	NMHC2- 25S	25	1.08		316

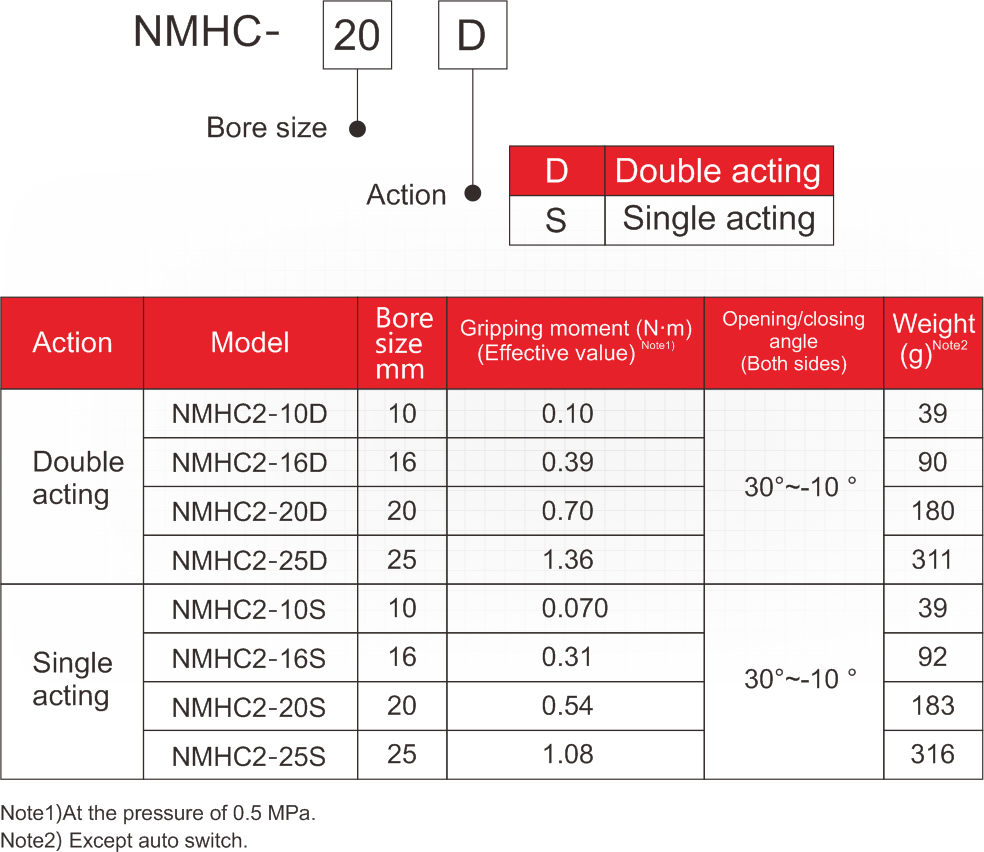

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

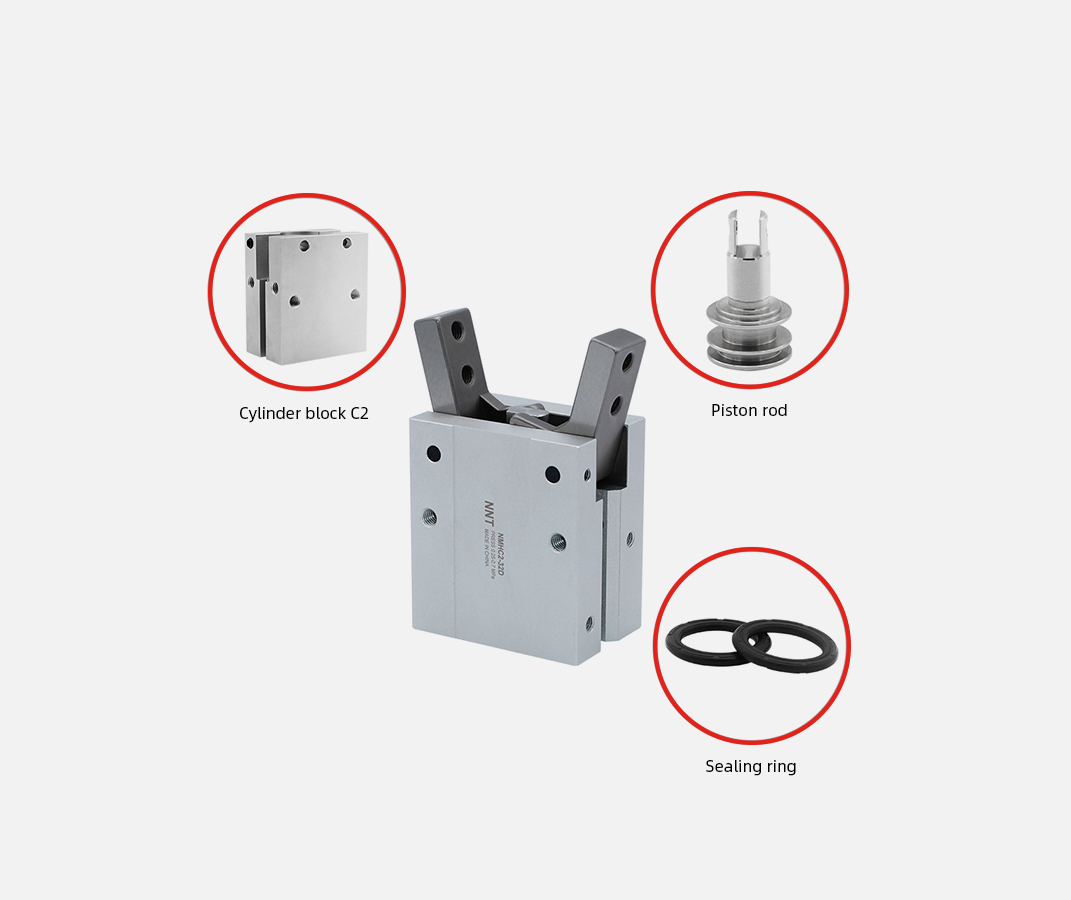

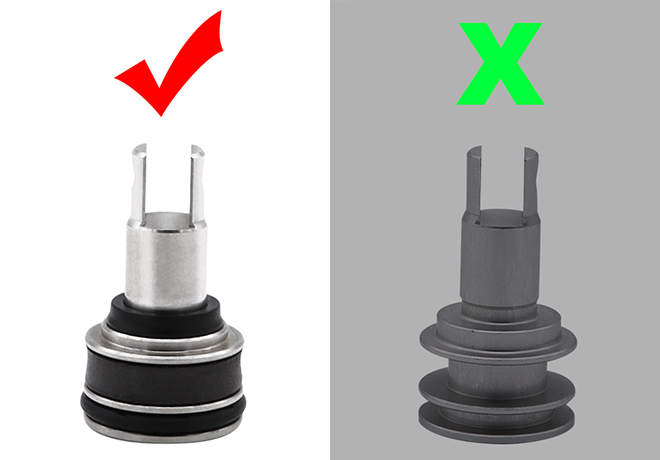

Pneumatic Actuator Core Part
