Pneumatic Actuator

Parallel Type Air Gripper NMHZ2

-10~60 (Not frozen)
180(NMHZL2 series 120)
Double acting•Single acting

Solid state auto switch
(NMHZAJ2 without auto switch)
Pipe Size:M3x0.5/M5x0.8

Bore size		6mm	10mm	16mm \|20mm	25mm	32mm	40mm
Fluid		Air
Operating pressure	Double acting	0.15~0.7MPa	0.2~0.7MPa	0. 1~0.7MPa		0.1~0.7MPa
	Single acting	0.3~0.7MPa	0. 35~0.7MPa	0. 25~0.7MPa		0.25~0.7MPa
Ambient and fluid temperature		-10~60 (Not frozen)
Repeatability		±0.01 mm				±0.02mm
Max. operating frequency		180(NMHZL2 series 120)				60
Lubrication		Not required

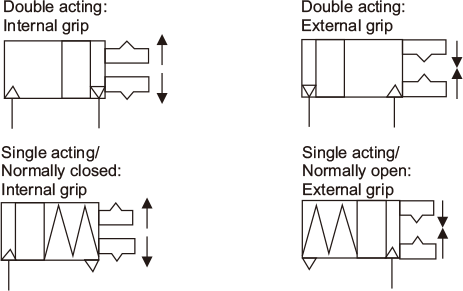

Action		Double acting•Single acting
Auto switch		Solid state auto switch(NMHZAJ2 without auto switch)
Pipe Size		M3x0.5		M5x0.8

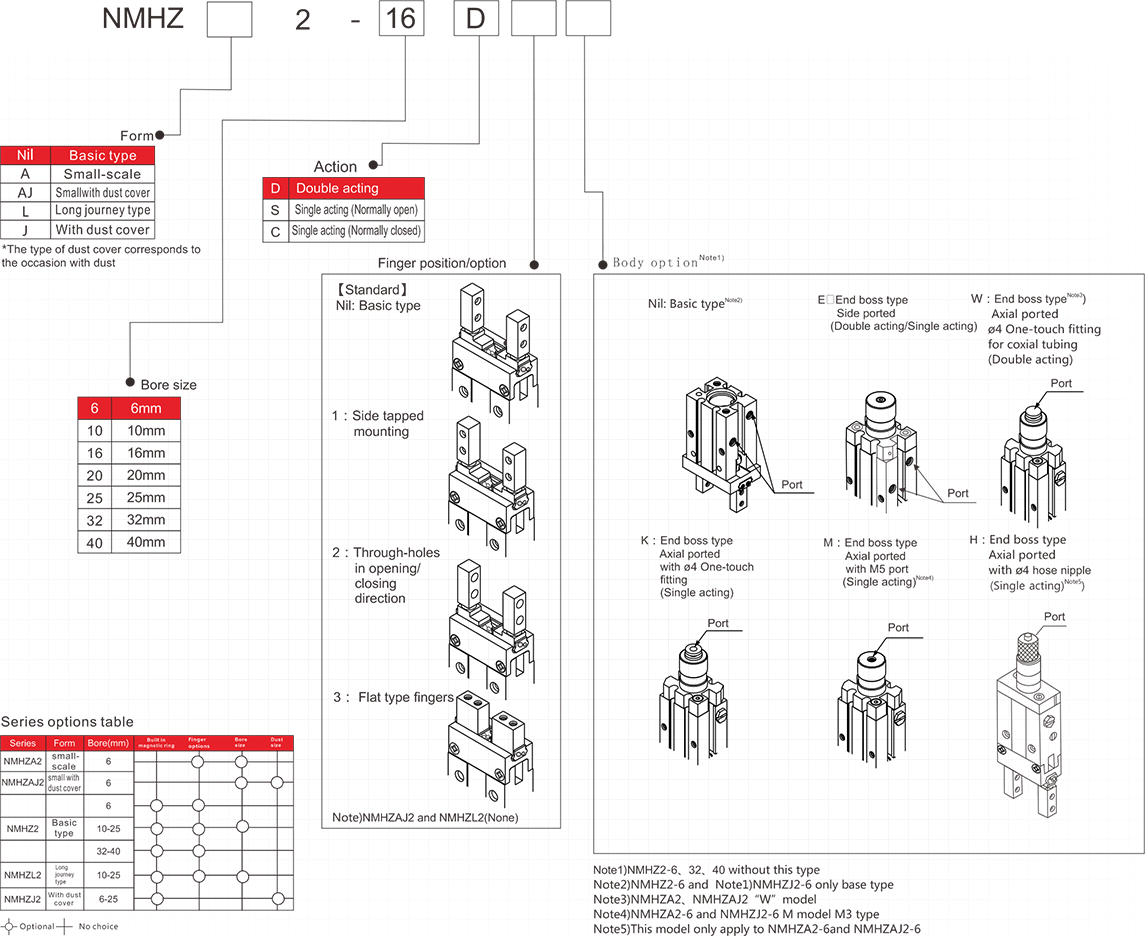

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

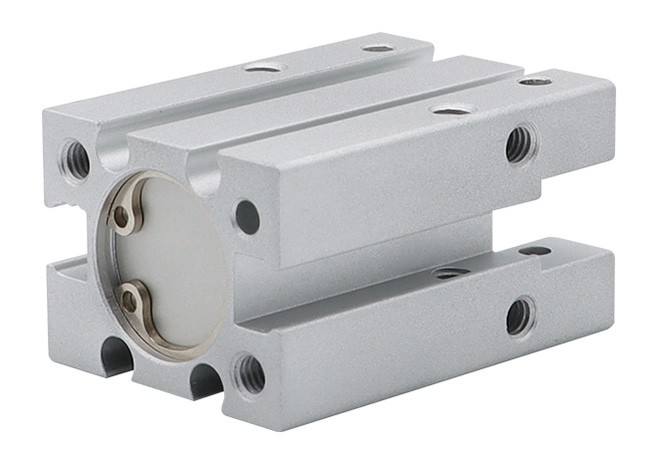

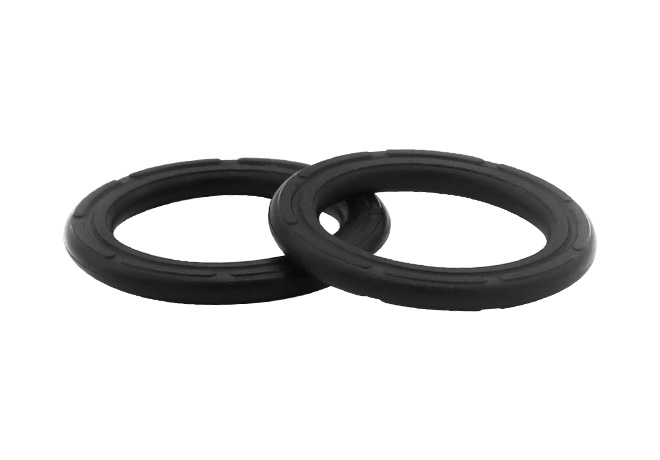

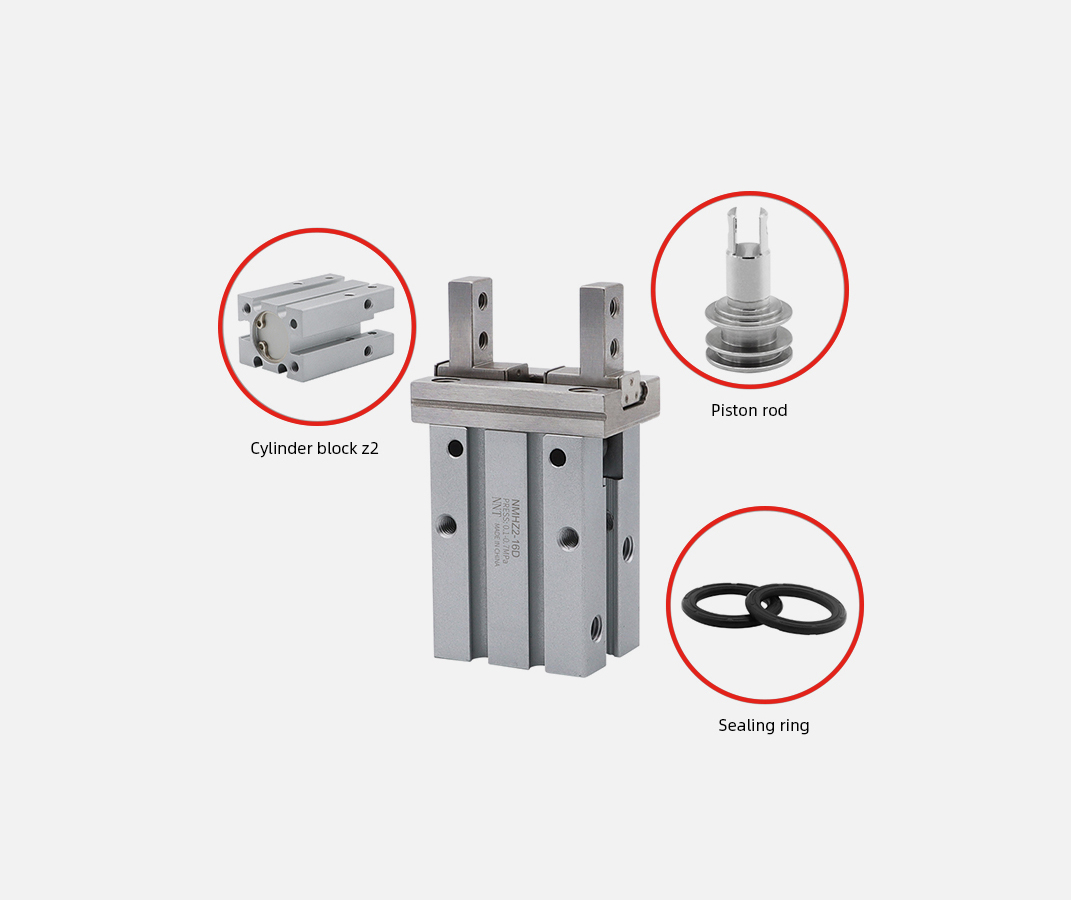

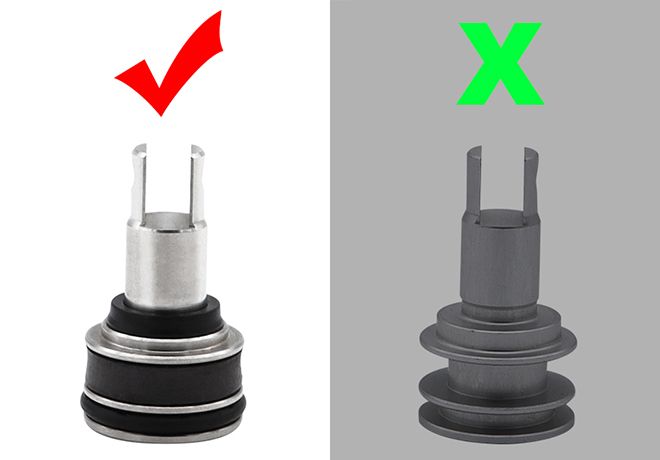

Pneumatic Actuator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Pneumatic Actuator

PRODUCT ADVANTAGE

High precision, high resolution positioning (eliminate reverse clearance through structure)

Stepper motor + misalignment detection with encoder

Swing Angle set arbitrarily (64 points)

Arbitrary acceleration and deceleration (at low speed, it can also achieve smooth movement without vibration)

It can run continuously in the same direction

Optional brake {NEWHRT1A does not come with a brush device

Note1)NMHZ2-6、32、40 without this type

Note2)NMHZ2-6 and Note1)NMHZJ2-6 only base type

Note3)NMHZA2、NMHZAJ2“W”model

Note4)NMHZA2-6 and NMHZJ2-6 M model M3 type

Note5)This model only apply to NMHZA2-6and NMHZAJ2-6

Parallel Type Air Gripper NMHZ2

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
