Low Profile Air Gripper NMHF2,Low Profile Air Gripper NMHF2 Manufacturer & Supplier

Bore sizemm			8	12	16	20
Fluid			Air
Action			Double acting
Operating pressure(MPa)			0.15~0.7	0.1~0.6
Ambient and fluid temperatures			10-60℃(Not fro
Repeatability			±0.05*
Maximum operatingfrequency(c.p.m)			Short stroke，Medium stroke: 120，Long stroke: 60
Autoswitch	Contactles	2-wire	ND-M9BL
		3-wire	ND-M9PL(PNP),ND-M9NL(NPN)

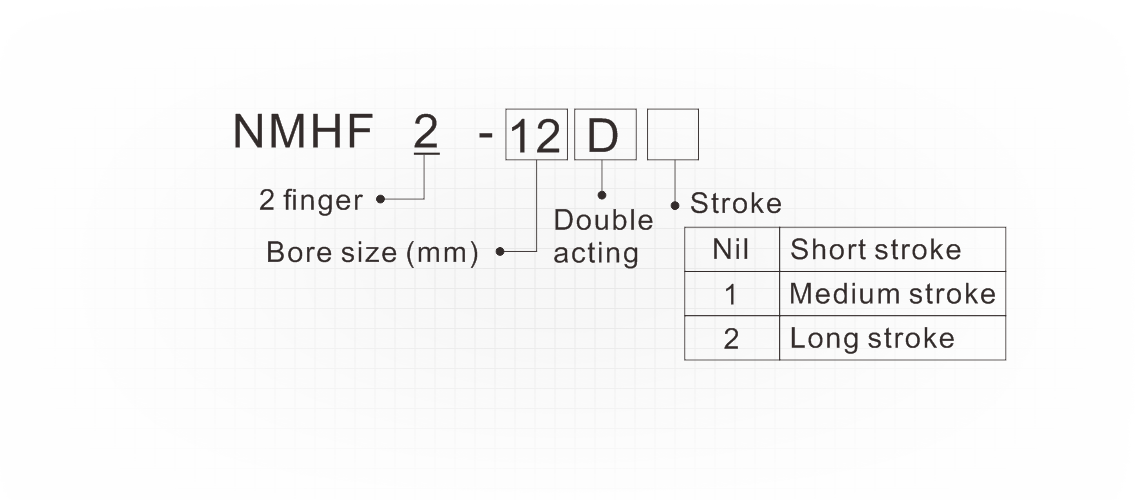

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

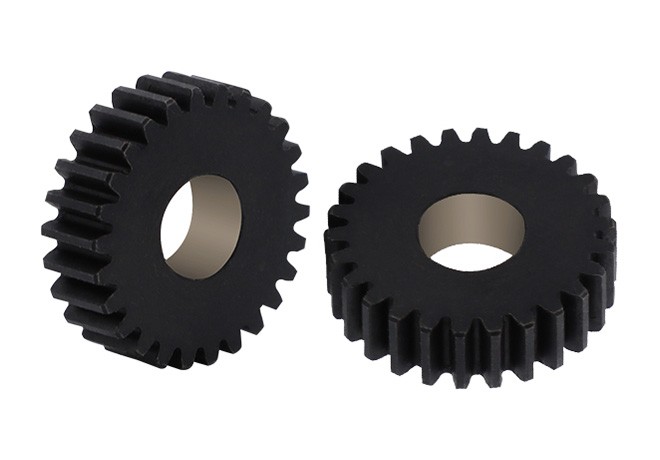

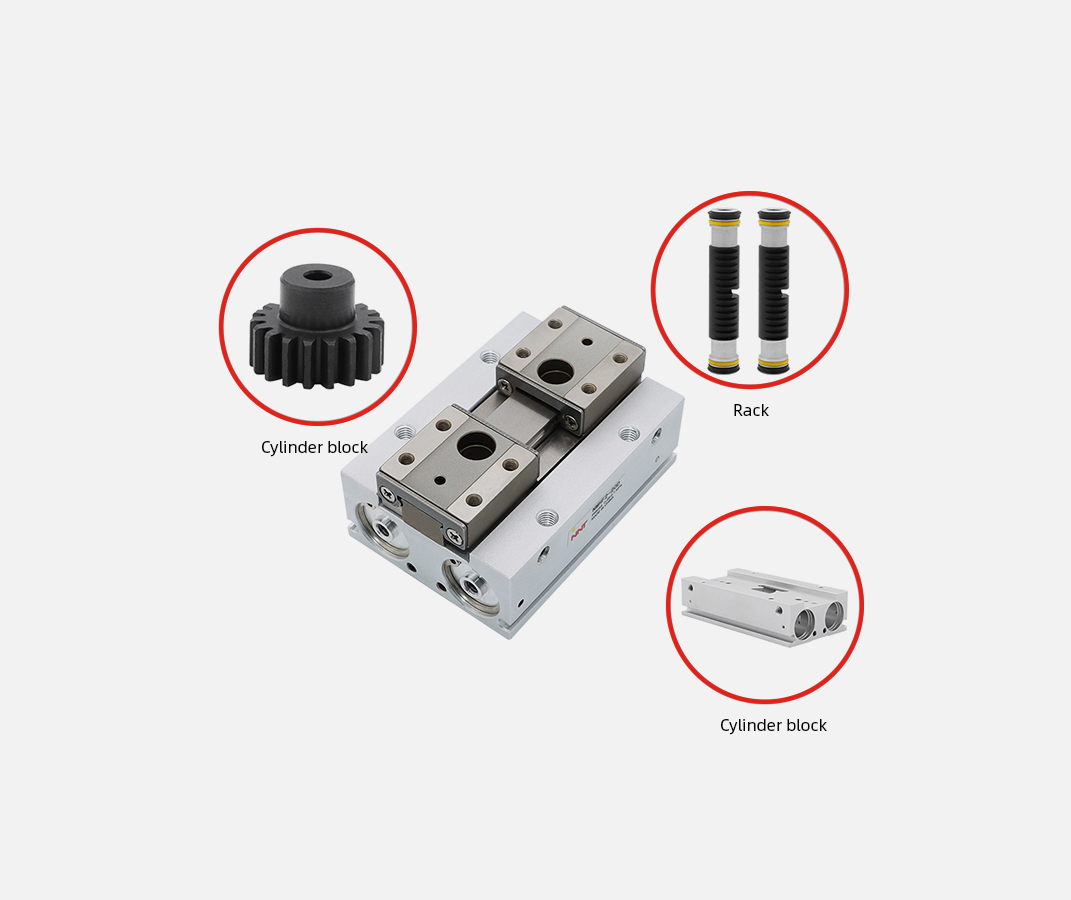

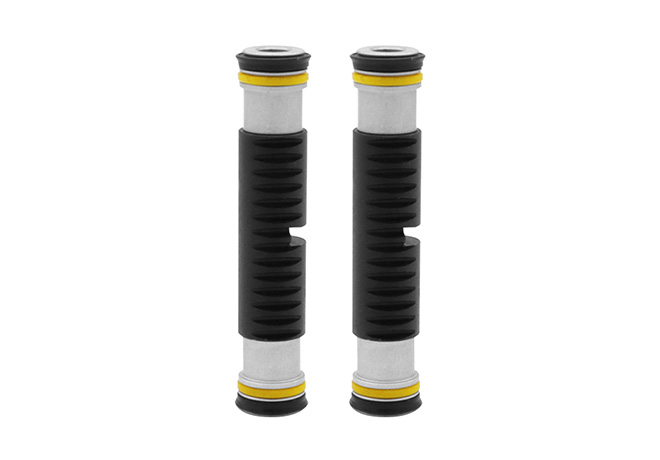

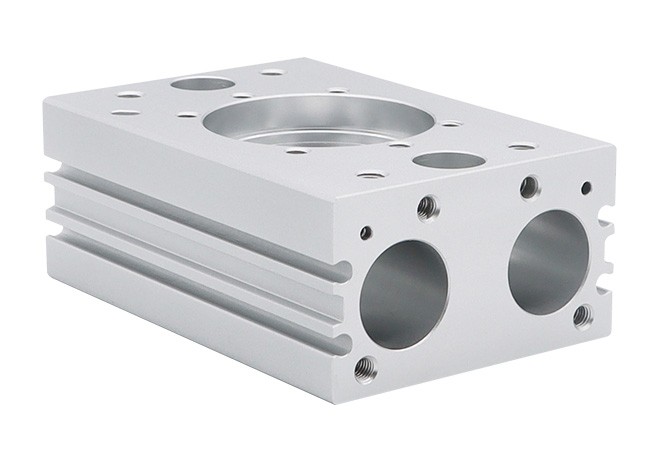

Pneumatic Actuator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Pneumatic Actuator

PRODUCT ADVANTAGE

Compared with the NMHZ2 series, the height is about 1/3 smaller, not only reduce the space, but also reduce the bending moment, so the accuracy is improved.

There are long, medium and short opening and closing strokes of each cylinder diameter.

When there i s no unbalanced load, if there i s an unbalanced load on the finger, the max imum i s ±0.05mm due to the influence of the tooth gap

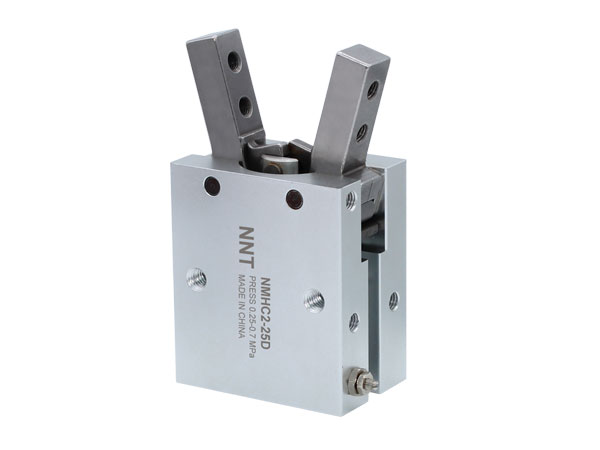

Pneumatic finger, also known as pneumatic clamp claw or pneumatic clamp finger, is the use of compressed air as a power, used to grab or grab the workpiece executive device. Originally originated in Japan, after being widely used by domestic automation enterprises.

According to the style, it can be divided into Y type clip finger and flat type clip finger. The cylinder diameter is divided into 16mm, 20mm, 25mm, 32mm and 40MM.

Low Profile Air Gripper NMHF2

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
