Digital Vacuum Pressure Regulator NITV2090 Pneumatic Air Pressure Control Components NNT Pneumatic

Model		NITV2090	NITV2091
power supply	Electric voltage	DC24V士10%	DC12-15V
	Current consumption	Power supply voltage 24 VDC type: 0.12 A or les Power supply voltage 12 to 15 VDC type: 0.18 A or less
Minimum supply vacuum pressure^{Note 1}		Set pressure -13.3kPa
Maximum supply vacuum pressure		-101kPa
Set pressure range		-1.3~-80kPa
Input signal	Current type^{Note 2}	DC4-20mA,DC0~20mA(collectiv)
	Voltage type	DC0-5V,DC0-10V
	Preset input	4 points (- COM), 16 points (no COM polarity)
Input impedanc	Current type	Below 250 Ω^{Note 3}
	Voltage type	About 6.5k Ω
	Preset input	Power supply voltage DC24V type: about 4.7k Ω Power supply voltage DC12V type: about 2.0k Ω
Output signal (Monitoring output)	Analog output	DC1-5V (output impedance: above 1k Ω)& DC4-20mA (sink type) (negative impedance: below 250 Ω)& nbsp; Output accuracy within ± 6% (F.S.)
	Switch output	NPN open collector output: maximum 30V, 80mA&nbsp& nbsp; PNP open collector output: maximum 80mA
Linearity		Less than ± 1% F.S
Hysteresis		0.5%F.S. below
repeatability		±0.5%F.S. below
sensitivity		0.2%F.S. below
Temperature		±0.12%F.S./C below
Output pressure display	accuracy	±2%F.S.±1digit below
	unit	kPa^{Note 5}Layer small represents:1
Environmental temperature and fluid temperature used		0-50C(No condensation)
Protective structure		IP65
quality		350g

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

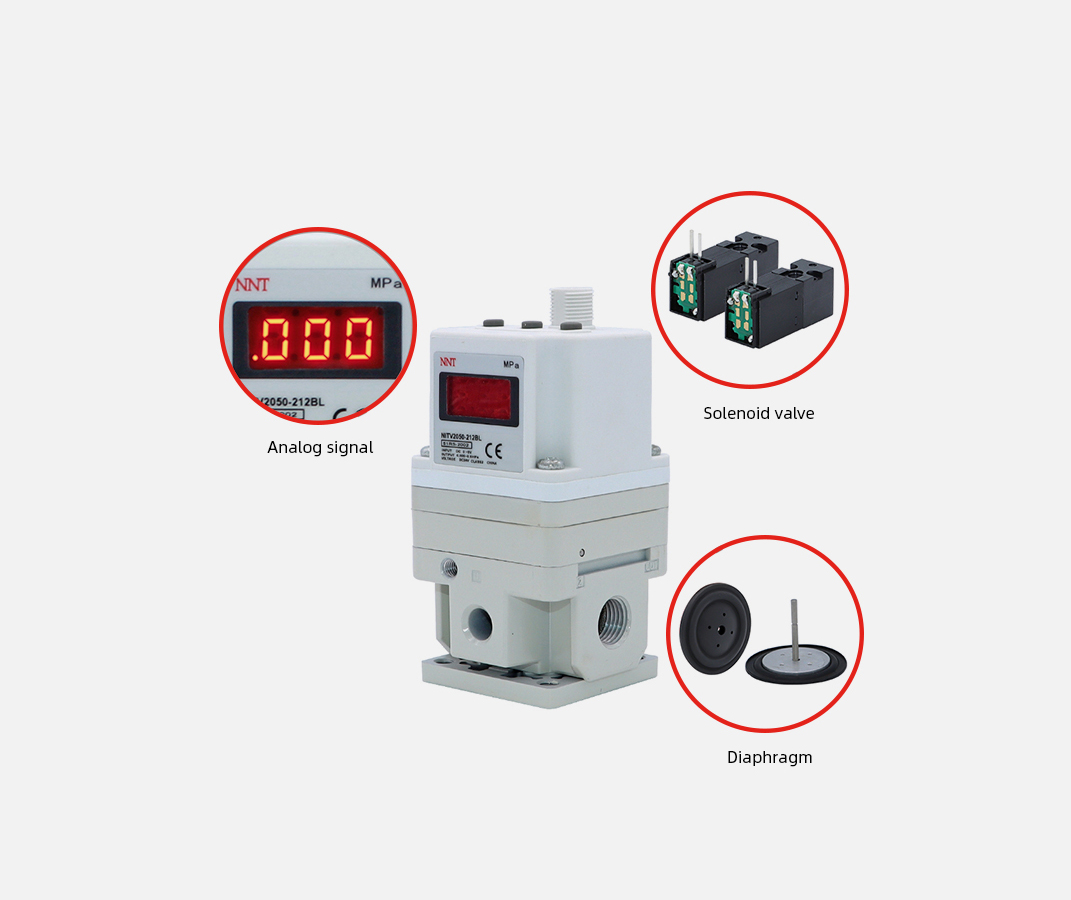

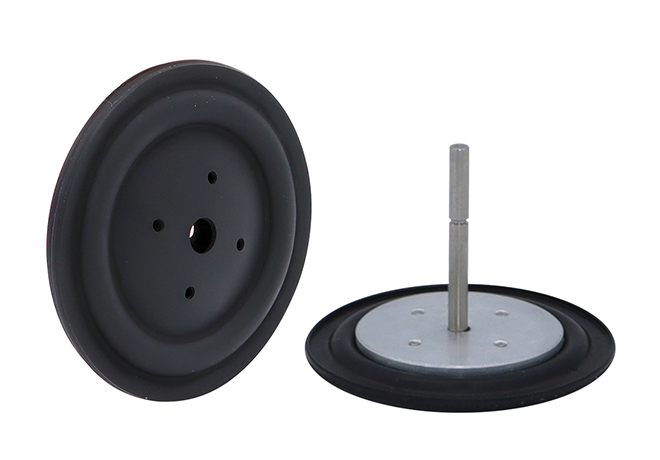

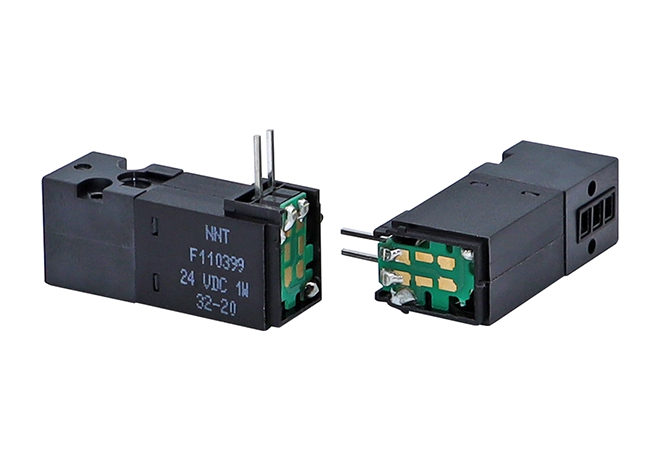

Pneumatic Pressure Regulator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

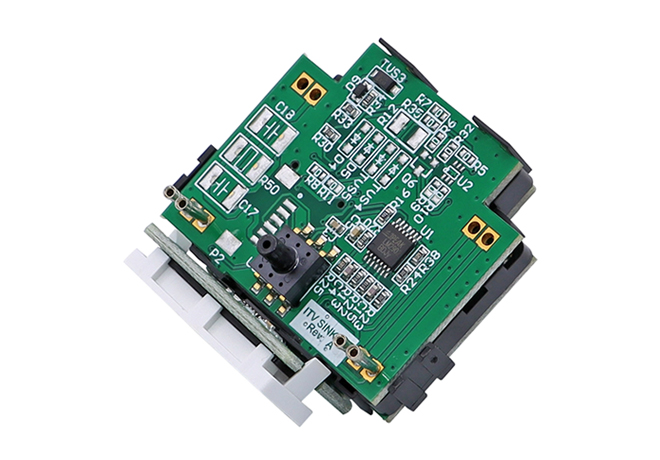

lectric Pneumatic Regulator Core Part

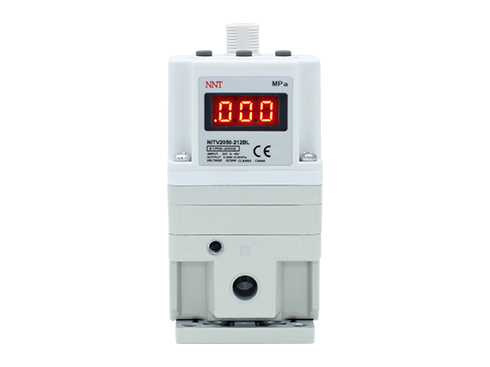

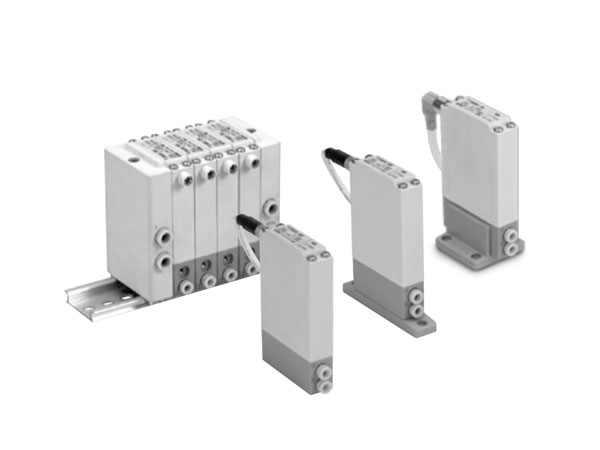

Digital Vacuum Pressure Regulator NITV2090

Pneumatic Pressure Regulator

PRODUCT ADVANTAGE

NNT pneumatic component. We have the mature craft and the production line, the corrosion resistant and robust design along with a wide range of options makes it ideal for OEM.

E/P regulator, Air gripper, Precision regulator, Digital pressure switch, Flow switch, Air cylinder else.

Our company puts most of energy in product quality inspection and has imported testing equipment to ensure the high quality, so that we can provide a guarantee ofour product and then customers can use it trustingly.
Multiple types of pneumatic components.

Support customization to meet one-stop procurement needs

A vacuum pressure regulator is a device used to control and regulate the pressure within a vacuum system.
It is an essential component of many vacuum systems, especially those used in scientific research and industrial applications where precise and stable vacuum pressure is critical.
The vacuum pressure regulator works by controlling the flow of gas into or out of the vacuum chamber to maintain a set pressure level.
This allows for precise control of the vacuum pressure, which is essential for many applications. Such as semiconductor processing, material science research, and vacuum coating.
Vacuum pressure regulators come in various designs and configurations. Including manual and automated versions, and can handle a wide range of vacuum pressures, from high vacuum to low vacuum levels.

Our pneumatic products have been widely used in all walks of life.

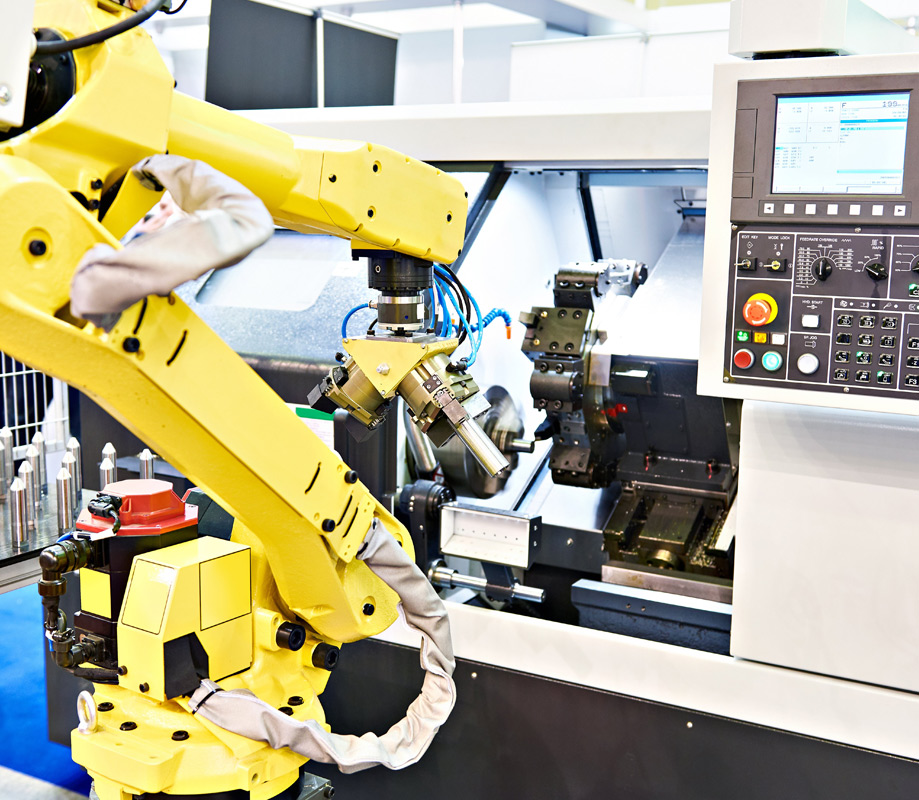

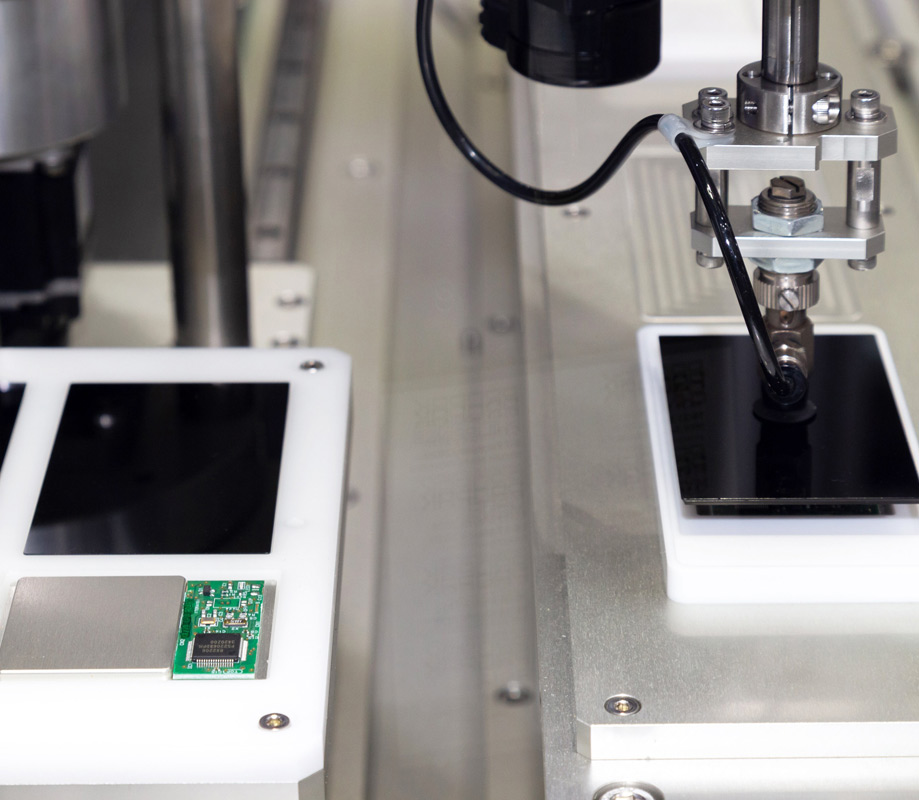

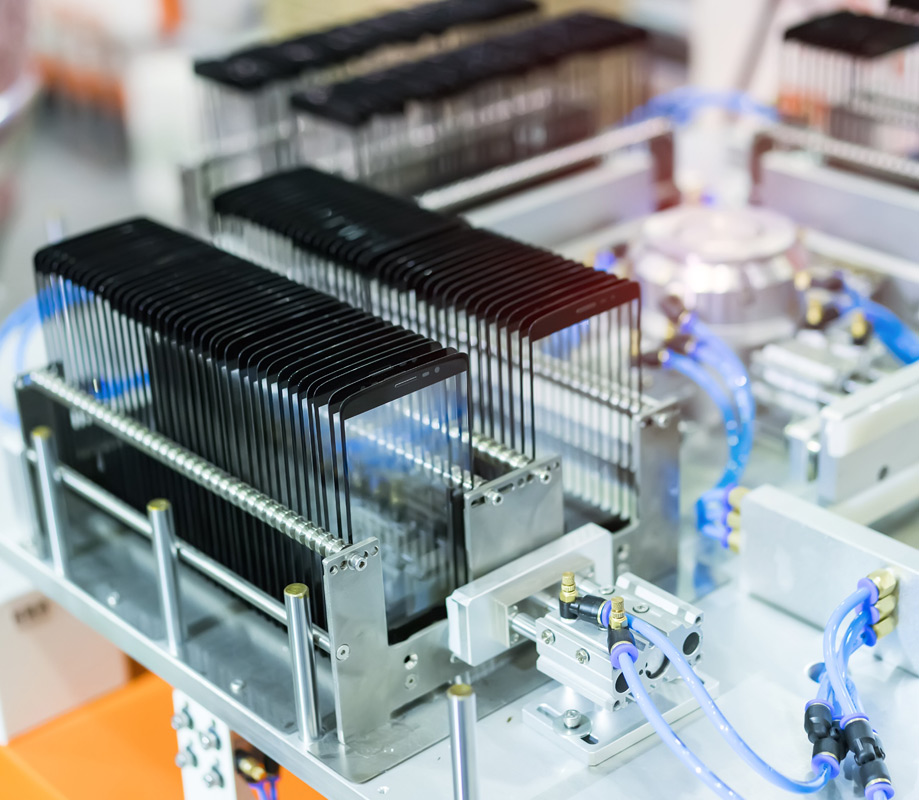

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
