Pneumatic Pressure Regulator

High pressure proportional valve NITVX2000

0.01 to 3.0 M P a
0 to 5 V D C, 0 to 10 V D C
6 ~ 6 . 5 K Ω ( at o r din a ry t e m p e r a t u r e ）

Fluid：Air 、 N 2 、 O 2 、 A r
0 - 5 0 ℃ ( No c o n d e n s a tio n )
A p p r o x. 5 70 g ( wit h o ut o p tio n s )

Model		NITV101□（Note8）	NITV103□（Note8）	NITV105□（Note8）
		NITV201□	NITV203□	NITV205□
		NITV301□	NITV303□	NITV305□
Minimum supply pressure		Set pressure +0.1 MPa
Maximum supply pressure		0.2MPa	1.0MPa
Set pressure range□（Note1）		0.005~0.1 MPa	0.005~0.5MPa	0.005~0.9MPa
Power supply	Voltage Current consumption	DC24V±10%, DC12-15V
		Power supply voltage 24 VDC type: 0.12 A or less□（Note9） Power supply voltage 12 to 15 VDC type: 0.18 A or less
Input signa	Current type(Note2） Voltage type Preset input	DC4~20mA, DC0~20mA(Sink type)
		DC0~5V, DC0-10V
		4 points (Negative common), 16 points (No common polarity)
Input impedance	Current type Voltage type Digital input	250 Ω or less©
		Approx. 6.5 KΩ
		Power supply voltage 24 VDC type: Approx. 4.7 KΩ Power supply voltage 12 VDC type: Approx. 2.0 KΩ
Output signal output (monitor output)	Analog out Switch out	1 to 5 VDC (Output impedance: Approx. 1 kΩ) 4 to 20 mA DC (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less
		NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA
Linearity		± 1% F.S. or less
Hysteresis		0.5% F.S. or less
Repeatability		± 0.5% F.S. or less
Sensitivity		0.2% F.S. or less
Temperature characteristics		± 0.12% F.S./°C or less
Output pressure Note 4) display	Accuracy Minimum unit	± 2% F.S. ± 1 digit or less
		Mpa: 0.001, kgf/cm2: 0.01, bar: 0.01, psi: 0.1 , kPa: 1
Ambient and fluid temperature		0 to 50°C (No condensation)
Enclosure		IP65

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

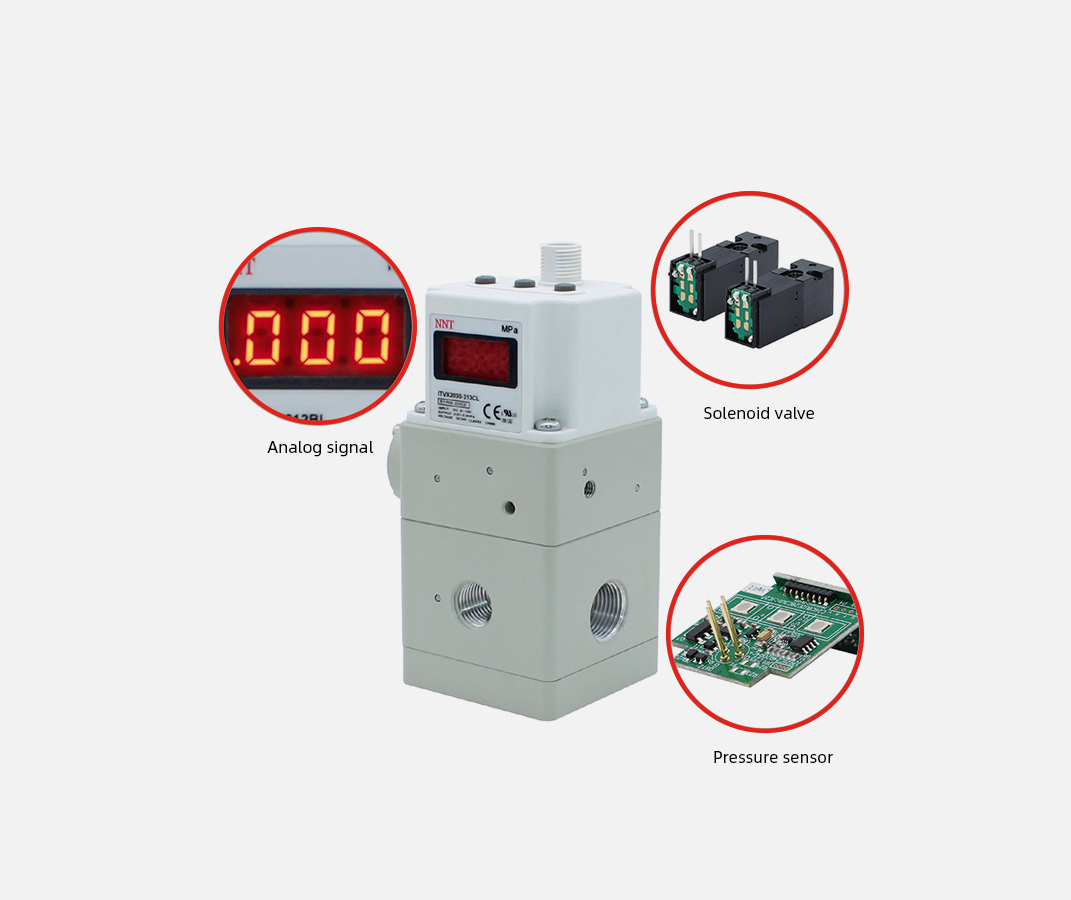

Pneumatic Pressure Regulator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

High pressure proportional valve NITVX2000

Pneumatic Pressure Regulator

PRODUCT ADVANTAGE

NNT pneumatic component. We have the mature craft and the production line, the corrosion resistant and robust design along with a wide range of options makes it ideal for OEM.

E/P regulator, Air gripper, Precision regulator, Digital pressure switch, Flow switch, Air cylinder else.

Our company puts most of energy in product quality inspection and has imported testing equipment to ensure the high quality, so that we can provide a guarantee ofour product and then customers can use it trustingly.
Multiple types of pneumatic components.

Support customization to meet one-stop procurement needs

A vacuum pressure regulator is a device used to control and regulate the pressure within a vacuum system.
It is an essential component of many vacuum systems, especially those used in scientific research and industrial applications where precise and stable vacuum pressure is critical.
The vacuum pressure regulator works by controlling the flow of gas into or out of the vacuum chamber to maintain a set pressure level.
This allows for precise control of the vacuum pressure, which is essential for many applications. Such as semiconductor processing, material science research, and vacuum coating.
Vacuum pressure regulators come in various designs and configurations. Including manual and automated versions, and can handle a wide range of vacuum pressures, from high vacuum to low vacuum levels.

High pressure proportional valve NITVX2000

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
