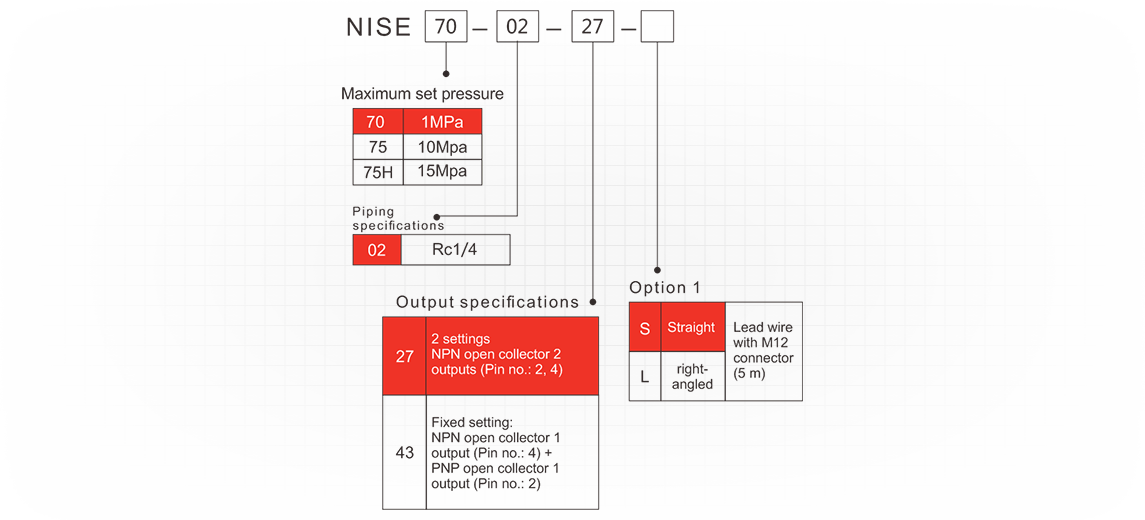

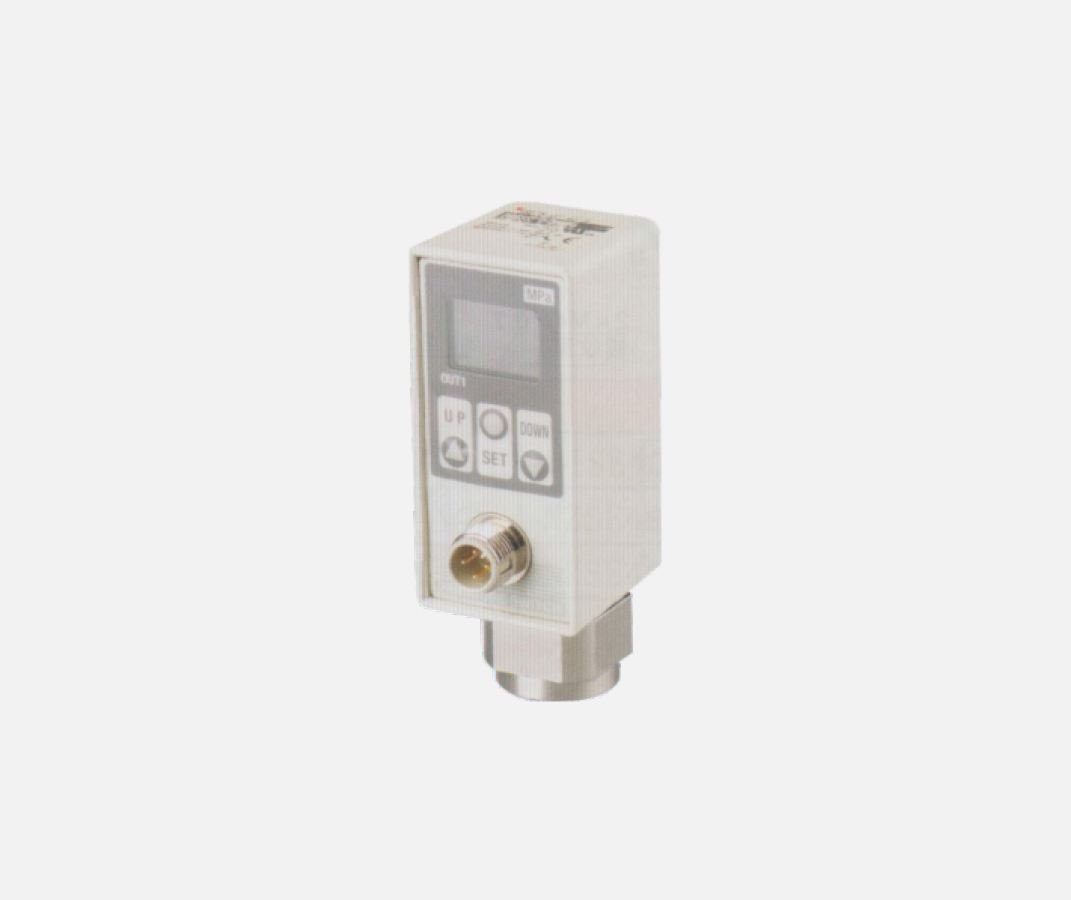

| Model | N ISE7 0 | N ISE7 5 N | N ISE7 5 H | |
| Pressure range | 0 ~ 1 0 M pa | 0 ~ 1 0 M pa 0 | 0 ~ 1 5 M pa | |
| Setting pressure range | - 0 . 1 ~ 1 M pa - | - 0 . 4 ~ 1 0 M pa | - 0 . 5 ~ 1 5 M pa | |
| Withstand pressure | 500kPa | 500kPa | 1.5MPa | |
| Minimum unit setting | 0.1kPa | 0.1kPa | 0.001MPa | |
| Applicable flfluid | Air, Non-corrosive gas, Non-flflammable gas | |||
| Power supply voltage | DC12~24V±10% ， Ripple (p-p) 10% or less (with power supply polarity protection) | |||
| Current consumption | 555 mA or less (at no load) | |||
| Switch output | NPN or PNP open collector 1 output, NPN or PNP open collector 2 outputs | |||
| Maximum load current | 80mA | |||
| Maximum applied voltage | 28 V (at NPN output) | |||
| Residual voltage | 1 V or less (with load current of 80 mA) | |||
| Response time | 2.5 ms (with anti-chattering function: 20 ms, 160 ms, 640 ms, 1000 ms, 2000 ms) | |||
| Short circuit protection | With short circuit protection | |||
| Repeatability | ±0.5%F.S. | |||
| Hysteresis | Hysteresis mode | Variable (0 or above) | ||
| Window comparator mode | ||||
| Voltage output | Output voltage (Rated pressure range) | 1~5V±2.5%F.S. | 0.6~5V±2.5%F.S. | |
| Linearity | ±1%F.S. | |||
| Output impedance | Approx. 1 kΩ | |||
| Current output | Output voltage (Rated pressure range) | 4~20mA±2.5%F.S. | 2.4~20mA±2.5%F.S. | |
| Linearity | ±1%F.S. | |||
| Load impedance | Maximum load impedance: Power supply voltage 12 V: 300 Ω, Power supply voltage 24 V: 600 Ω Minimum load impedance: 50 Ω | |||
| Display | 4-digit, 7-segment, 2-color LCD (Red/Green) | |||
| Shockproof | 10 ~ 500Hz, the smaller of 1.5mm or 98m / S 2, 2 hours in X, Y and Z | |||
| Shockproof | 980m / S 2, 3 times in X, y and Z directions (without power supply | |||
| Environment | Enclosure | IP40 | ||
| Operating temperature range | Operating: 0 to 50°C, Stored: –10 to 60°C (No freezing or condensation) | |||
| Operating humidity range | Operating/Stored: 35 to 85% RH (No condensation) | |||
| Withstand voltage | AC1000V for 1 minute between terminals and housing | |||
| Insulation resistance | 50 MΩ or more (DC500V measured via megohmmeter) between terminals and housing | |||
| Standards | CE , UL/CSA (UL508) RoHS | |||
| Lead wire | Oilproof cable with M12 4-pin pre-wired connector, 4 cores, ø4, 5 m | |||
