Digital Flow Sensor

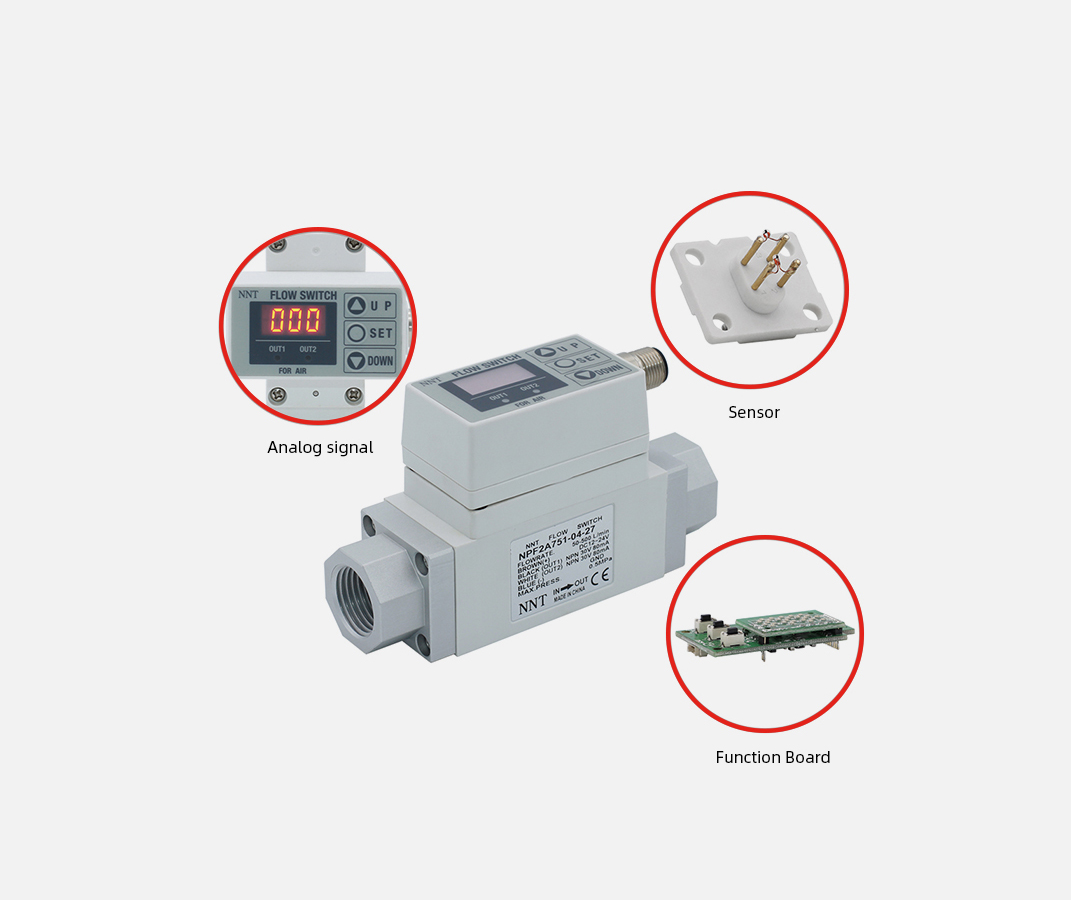

Digital Flow Sensor NPF2A7

View manual
Contact us
NPN open collector Maximum load
current: 80 mA; Internal voltage drop:
1 V or less. Maximum applied voltage: 30 V; 2 outputs
Response Time:2.5 Ms (With
Anti-Chattering Function: 20 Ms,
160 Ms, 640 Ms, 1000 Ms, 2000 Ms)

Digital Flow Sensor NPF2A7

Standard Specifications

ModelNPF2A710--01-27NPF2A750--02-27|NPF2A711-03--27NPF2A721-03--27|NPF2A751-04-27
Port siez Rc(PT)1/81/43/83/81/2
Measured fluidAir, Nitrogen
Flow rate measurement range(L/min)1~105~5010~10020~20050~>500
Minimum set unit(L/min)0.10.5125
Accumulated pulse flow rate exchange value(Pulse width: 50 ms)0.1L/1pulse0.5L/1pulse1L/1pulse2L/1pulse5L/1pulse
Display unitsInstantaneous flow rateL/min,CFMx10-2L/min,CFMx10-1
Accumulated flowL,ft3x10-1
Operating pressure range-50kPa-0.5MPa-50kPa-0.75MPa
Operating fluid temperature0-50C
Power supply voltageDC12-24V±>10%
Current consumption150mA or less160mA or less170mA or less
Accumulated flow range0-999999L
Detection typeHeater type
Straightness±5% F.S.
Repetition accuracy±>1% F.S.±>2% F.S.
Temperature characteristics±3% F.S. (15 to 35°C, 25°C reference), ±5% F.S. (0 to 50°C, 25°C reference)
Output"
specifications		Switch outpuNPN open collector Maximum load current: 80 mA; Internal voltage drop: 1 V or less. Maximum applied voltage: 30 V; 2 outputs
Accumulated pulse outputNPN or PNP open collector (same as switch output)
HysteresisHysteresis mode: Variable (can be set from 0), Window comparator mode : 3-digit fixed
Response timeLights up when output is turned ON OUT1: Green; OUT2: Red
Status LED’s1s or less
EnvironmentEnclosurelp65
Operating temperature rangeOperating: 0 to 50°C, Stored: –25 to 85°C (with no freezing and condensation)
Withstand voltage1000 VAC for 1 minute between terminals and housing
Insulation resistance50 MΩ or more (500 VDC measured via megohmmeter) between terminals and housing
Noise resistance1000V P-P Pulse width 1 μ s, duration 1 ns
Conductor specificationM12 connector(3m)

SensorFlow r a te r ange
MinMax
PF2A7101  NL/min10  NL/min
3.5 CFM×10-2>35.0  CFM×10-2>
PF2A7505  NL/min50  NL/min
18 CFM×10-2>176 CFM×10-2>
PF2A71110  NL/min100  NL/min
3.5 CFM×10-1>35.5 CFM×10-1>
PF2A72120  NL/min200  NL/min
7 CFM×10-1>71 CFM×10-1>
PF2A75150  NL/min500  NL/min
18 CFM×10-1>176 CFM×10-1>

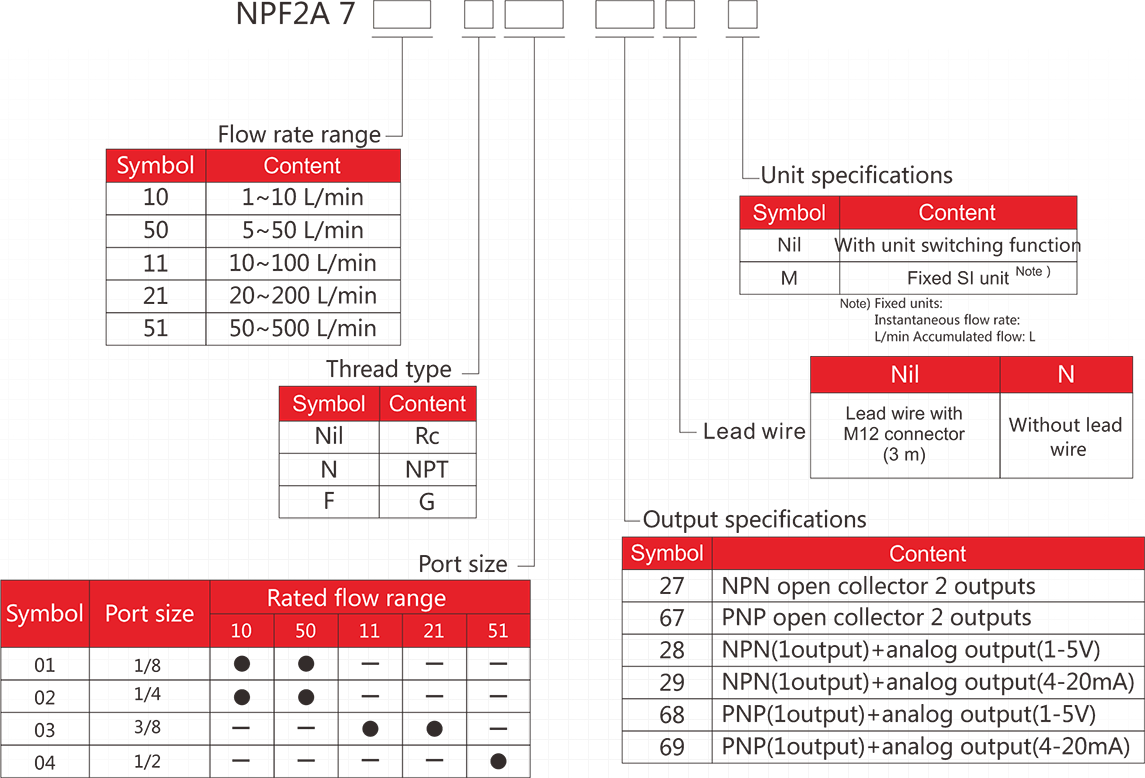

MODEL INDICATION

Standard Specifications

Digital Flow Sensor

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

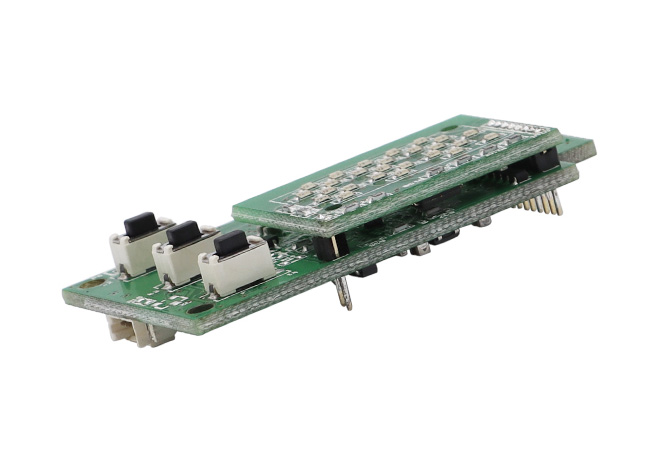

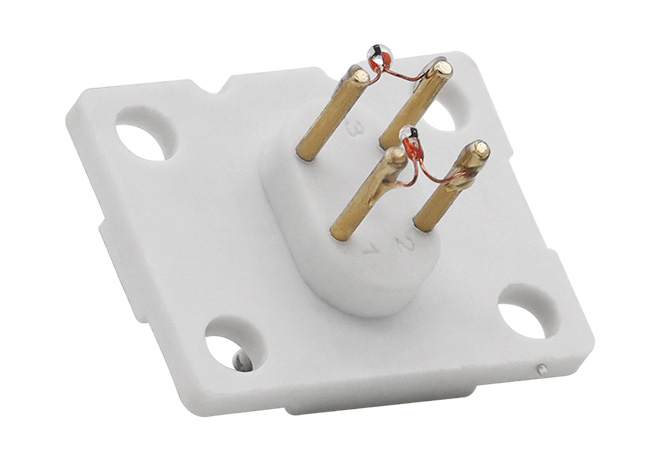

Digital Flow Sensor Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

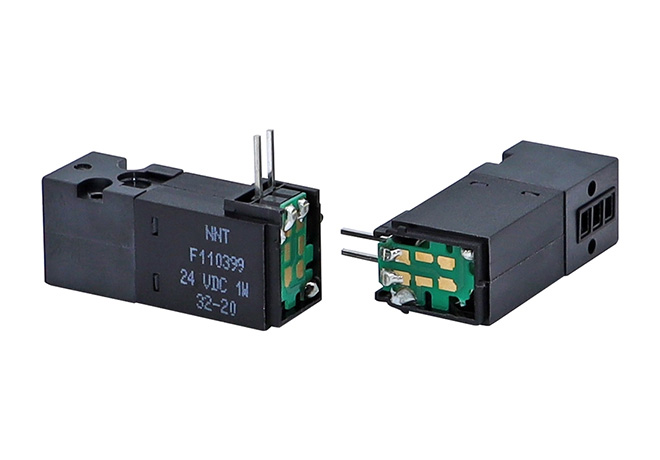

lectric Pneumatic Regulator Core Part
Digital Flow Sensor NPF2A7

Digital Flow Sensor NPF2A7

Core component advantage

Digital Flow Sensor

PRODUCT ADVANTAGE

flow switch is mainly in the water, gas, oil and other media pipeline online or plug-in installation to trigger the switch output alarm signal when the flow is higher or lower than a certain value, the system can make the corresponding execution unit action SOR flow switch is based on the flow to command the system switch.

The upper limit or lower limit is set for the flow switch. When the flow reaches the limit value, the flow switch will send a signal or alarm, and the system will run or stop. Generally, systems that require flow will use flow switches.
Can set and detect flow rate
Can display instantaneous flow or cumulative flow
There are two types of sensors and displays: integrated and separate
2 outputs, can independently set different flow rates
There are switch outputs, cumulative pulse outputs, and analog outputs



Digital Flow Sensor NPF2A7-NNT

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.


Digital Flow Sensor

Dimensions
ELECTRONIC VACUUM REGULATOR

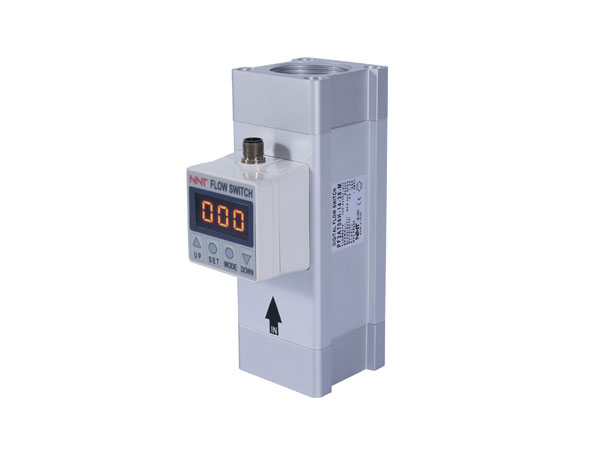

NPF2A711/721/75
Profile size
